Identifing Your Turbo Flange

This page is a quick reference guide to help determine your turbo flange types

HINTS & TIPS Quick Links

-Exhaust Bellows

-Exhaust Flexi

-Vband Flanges

-Wastegate piping

Turbo Inlet Flange Sizes

To view our range of CNC Turbo Inlet Flanges - click here:

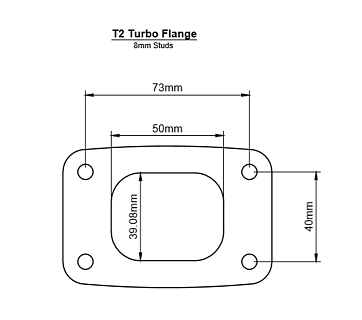

T2 Turbo Flange Measurements

Also known as T25 or T28

t25 turbo flange dimensions mm

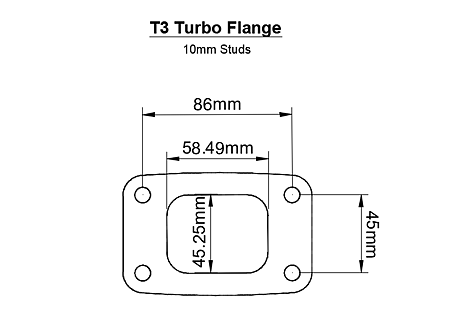

T3 Turbo Flange Measurements

t3 turbo flange dimensions mm

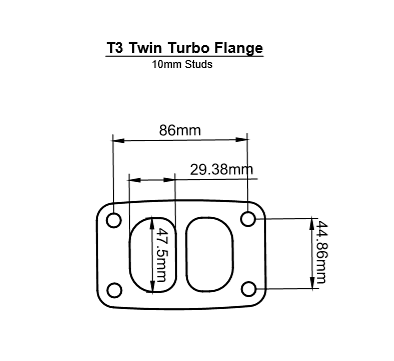

T3 Twin Scroll Turbo Flange Measurements

t3 twin scroll turbo flange dimensions mm

Need to build a Manifold??

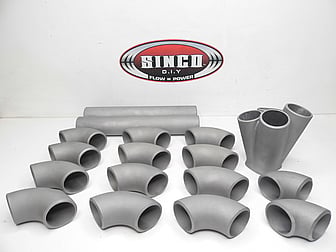

manifold build kit

4 CylinderSingle Entry

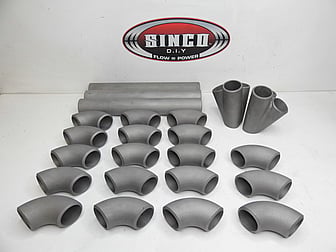

6 cylinder build kit

6 CylinderTwin Scroll

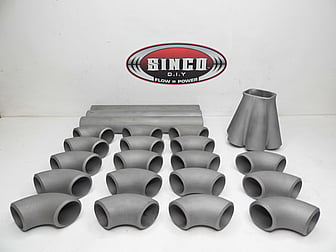

T3 manifold build kit

6 Cylinder Single Entry

Manifold Build Kits Available Here

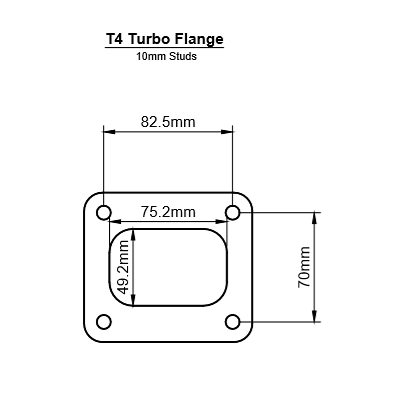

T4 Turbo Flange Measurements

t4 turbo inlet dimensions

T4 Twin Scroll Turbo Flange Measurements

t4 twin scroll dimensions

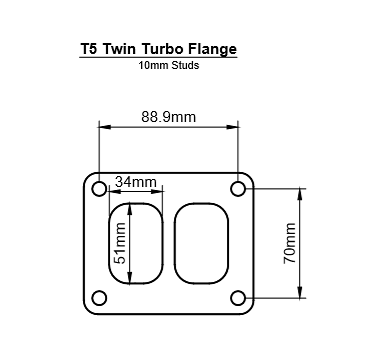

T5 Twin Scroll Turbo Flange Measurements

This flange is used for the Holset HRC52 & 55Pro

t5 twin scroll dimensions

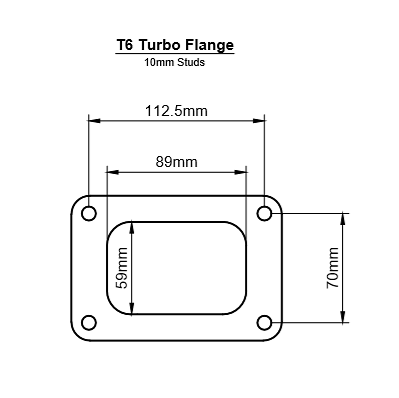

T6 Turbo Flange Measurements

t6 turbo inlet flange dimensions

T6 Twin Scroll Turbo Flange Measurements

t6 twin scroll dimensions

Turbo Inlet Flange Pictures

turbo flange size chart

t3 flange bolt pattern

t3 turbo flange bolt pattern

t4 turbo flange size chart

To view our range of CNC Turbo Inlet Flanges - click here:
